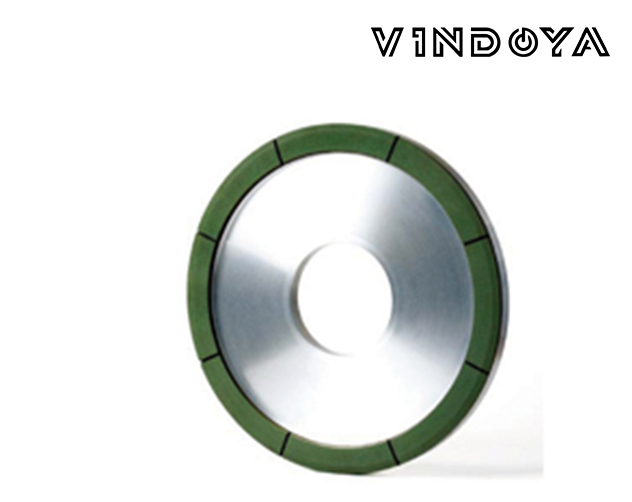

Name: Top Hammer Grinding Wheels
Description: This series of grinding wheels is mainly used for rough grinding and fine grinding of top hammer end faces. The products are not prone to heat generation or clogging during the grinding process, offer easy control of processing accuracy, high grinding efficiency, excellent sharpness, and long service life.
| Shape Name/Code | Outer Diameter (D) | Total Thickness (T) | Abrasive Layer Width (K) | Abrasive Layer Thickness (X) |
|---|---|---|---|---|
| Flat Grinding Wheel / 1A1 | 80 | 10-50 | 5 | 3-30 |
| 100 | ||||
| 125 | 3, 4, 5 | |||
| 150 | 5 | |||
| 180 | ||||
| 200 | ||||
| Single-Sided Concave Grinding Wheel / 6A2 | 300 | 10-50 | 5-30 | 3-30 |
| 350 | ||||
| 400 | ||||
| 450 |
Note: Customization is available based on the type of equipment used.
