Internal Structure Diagram of Equipment
Overall Machine Structure Layout

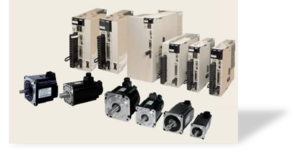

Servo Motor and Drive Control
Product Features:
System Stability:
The fully servo-controlled multi-axis system ensures high stability and precision during operation.
Separation of Function Zones:
The separation of the cutting area and the line storage/retraction area reduces contamination and improves cleanliness and operation efficiency.
Wide Range of Cutting Options:
Supports adjustable driving wheel spacing for different cutting sizes and precision needs, and offers two cutting modes: synchronous cutting and oscillating cutting.
Cost-Effective Consumables:
The driving wheel has a multi-slot structure, enabling multiple uses after wear, reducing operating costs.
Technical Parameters:
| Item | Unit | Parameter |
|---|---|---|
| Max Material Width/Height | mm | 500 |
| Max Material Length | mm | 400 |
| Lifting Stroke | mm | 520 |
| Horizontal Stroke | mm | 420 |
| Adjustable Cutting Wheel Width | mm | 145-545 |
| Cutting Speed | mm/hour | 0.1-999.9 |
| Steel Wire Running Speed | m/min | 1200 |
| Wire Storage Capacity | km | 20 (0.25mm diamond wire) |
| Overall Dimensions | mm | L2750 × W2800 × H2350 |
Remarks:
Other specifications and configurations can be customized according to customer requirements.
