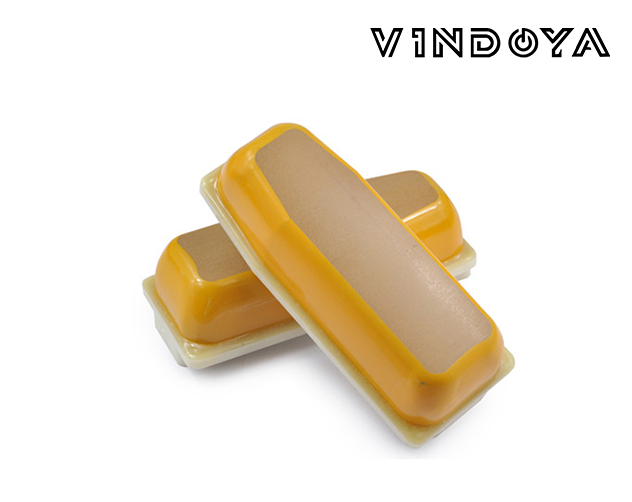

Name: Diamond Grinding Block
Description:
Metal bond diamond grinding blocks are primarily used as replacements for traditional silicon carbide grinding blocks for coarse grinding of stone surfaces. Resin bond diamond grinding blocks are used for precision grinding of stone surfaces. The unique formulation system and innovative structural design, combined with advanced production technology, ensure excellent grinding performance.
| Bond Type | Type | Size (mm) | Grit Size | Application |
|---|---|---|---|---|
| Metal | T1 (L140) | 133 x 56 x 17 | 24# – 240# | Coarse grind, Medium grind |
| T2 (L170) | 164 x 56 x 17 | 24# – 240# | ||
| T3 (Frankfurt) | 100 x 106/80 | 24# – 240# | ||
| Resin | T1 (L140) | 140 x 60 x 60 | 240# – 3000# | Medium grind, Fine grind |
| T2 (L170) | 170 x 70 x 60 | 180# – 5000# |
Remarks: Other specifications can be customized according to customer requirements.
