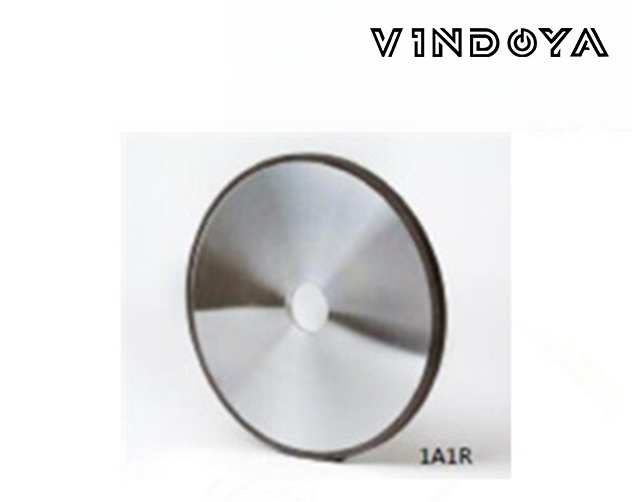

Name: Thin Disc Grinding Wheel
Description: This series of products is primarily used for external cylindrical grinding, cross-sectional grinding, and high-precision grooving and cutting of various molds. The 1A1R type wheels are specifically used for grooving and cutting large parts. The abrasive layer thickness of these wheels is greater than the base thickness, which helps with chip removal and cooling. The products feature low grinding heat, high grinding efficiency, sharpness, and long service life.
| Shape Name/Code | Outer Diameter (D) | Total Thickness (T) | Abrasive Layer Width (K) | Abrasive Layer Thickness (K) |
|---|---|---|---|---|
| Parallel Reinforced Wheel | 80 | 20 | 6, 10 | 1.5, 3 |
| 100 | ||||
| 125 | 25 | |||
| 150 | ||||
| Thin Disc Grinding Wheel | 100 | 0.8, 1.0, 2.0, 3.0 | 6.7 | |
| 125 | ||||
| 150 | ||||
| 180 | ||||
| 200 |
Remarks: Customization is available based on the type of equipment used.
