Name: Resin Bonded Diamond Grooving Wheel Description: Diamond saw blades are becoming increasingly widely used in the deep processing of ceramics and are important tools in ceramic processing. They can be used for mosaic cutting, edging, grooving, etc., and are suitable for equipment like continuous cutting machines and manual cutting machines. Common processing methods include manual single-blade cutting, continuous single-blade combined cutting, double-blade continuous cutting, and pre-cutting - chamfering - cutting continuous processing. These methods feature fast cutting speeds, long service life, and efficient performance, allowing for precise ceramic cutting. Resin bonded diamond grooving wheels are used for grooving the surfaces of ceramic tiles such as polished tiles, antique tiles, glazed floor tiles, and glazed wall tiles. They provide good sharpness, no edge chipping, smooth grooves, and can be combined with finer grits for fine grinding and polishing.
Name: Resin Bonded Diamond Disc Edge Grinding Wheel Description: Diamond edge grinding wheels are primarily used to correct the verticality of the four edges of ceramic tiles and to achieve the desired dimensions. They are essential tools for edge grinding of large-sized ceramic crystal tiles, porcelain tiles, and polished tiles. The main features are as follows: Sharpness is good, long service life, and low noise. Ensures the verticality and dimensional accuracy of the processed products, with no edge chipping or corner breakage. Strict control over the manufacturing process, ensuring stable product quality. Reasonable formulation and grit combinations are selected based on the tile material. Diamond edge grinding wheels can be divided into face-cutting edge grinding wheels and disc edge grinding wheels according to the grinding method. Disc edge grinding wheels can be further classified into metal-bonded diamond and resin-bonded diamond types based on the bonding agent used.

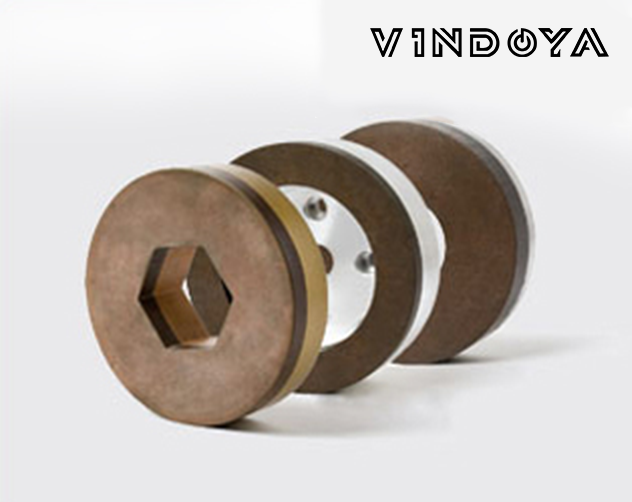

Name: Resin Bonded Diamond Chamfering Wheel Description: The chamfering wheel is a tool used for chamfering ceramic tiles. It is mainly used for the chamfering of tiles after edge grinding, which helps improve the safety of tiles during storage, transportation, and installation. Depending on the amount of chamfering required, chamfering wheels can be divided into two types: the head-type chamfering wheel and the continuous-type chamfering wheel. The head-type chamfering wheel has a larger cutting capacity and is used for larger chamfers, typically before polishing. The continuous-type chamfering wheel is used for post-polishing chamfering of tiles. Chamfering wheels can be classified based on the bonding agent into three categories: metal-bonded diamond, resin-bonded diamond, and resin-bonded silicon carbide. The resin-bonded diamond chamfering wheel is suitable for fine chamfering of ceramic tiles, providing sharp, straight, and smooth chamfers with long continuous usage.
Name: Soft Grinding Disc Description: Suitable for manual grinding and polishing of various natural and artificial stones with special shapes, such as lines, arcs, and steps. It can also be used for the renovation and maintenance of decorative stone surfaces. Compatible with all handheld electric or pneumatic grinding machines.

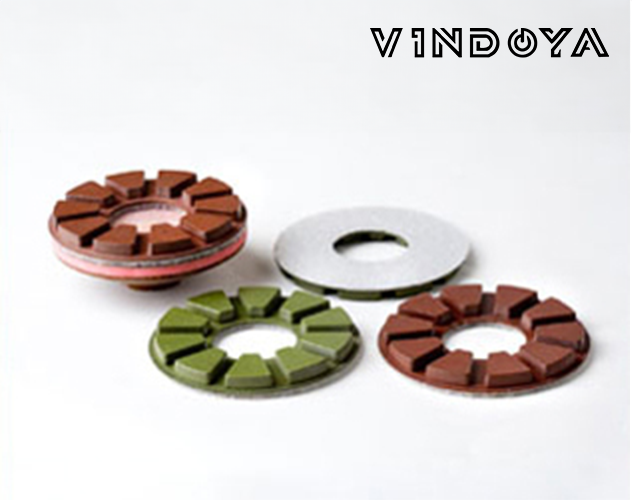

Name: Glazing Polishing Wheel Description: Also known as glazed surface polishing disc. This product is used on dedicated glazing polishing machines with planetary motion heads to perform full or semi-polishing on the surfaces of antique tiles, imitation stone tiles, polished crystal tiles, and glazed tiles. It is characterized by low usage cost, high grinding efficiency, high gloss finish, and no abrasion marks.

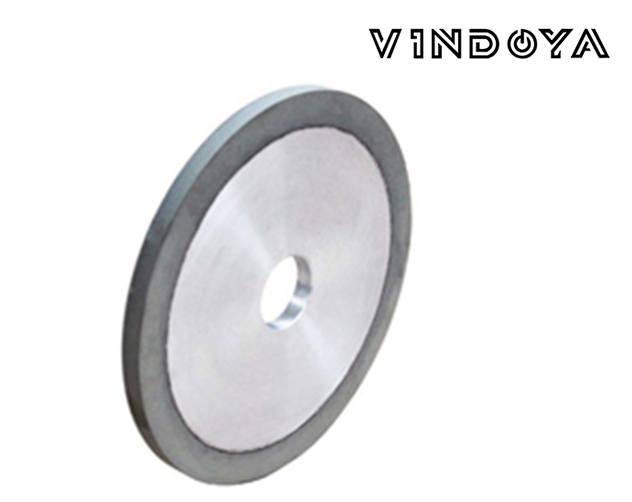

Name: Gemstone Grinding Wheel Description: This product is primarily used for rough and fine grinding of gemstones. It features high grinding efficiency, good self-sharpening properties, long service life, sharp grinding ability, and produces a smooth surface with no scratches during fine grinding. Additionally, it has a long wheel dressing interval and is resistant to clogging during the grinding process.
