Name: Diamond Planetary Wheel Description: The function of the diamond planetary wheel is similar to that of the cylindrical wheel, primarily used for coarse grinding after the brick body has been planed and thicknessed. During operation, the high-efficiency grinding action generated by the planetary wheel's rotation and the planetary head's revolution helps to further flatten and refine the surface of the brick body, enhancing polishing speed, reducing the wear of polishing tools, and lowering the re-polishing rate. This product features high grinding efficiency, excellent flatness of the brick body surface, and fine, uniform grinding marks.
Name: Diamond Grinding Disc Description: This product is manufactured using high-grade diamonds and premium metal powders through an advanced hot-press sintering process. It is primarily used for planar reshaping of refractory material surfaces. The product features high grinding efficiency, long lifespan, high installation precision, and excellent surface flatness. It is compatible with various domestic and imported bench grinders, as well as handheld grinders for refractory surface processing.
Name: Diamond Segments Description: Suitable for stone mining and block processing, diamond segments are available in rectangular trapezoid and wavy shapes, among others.

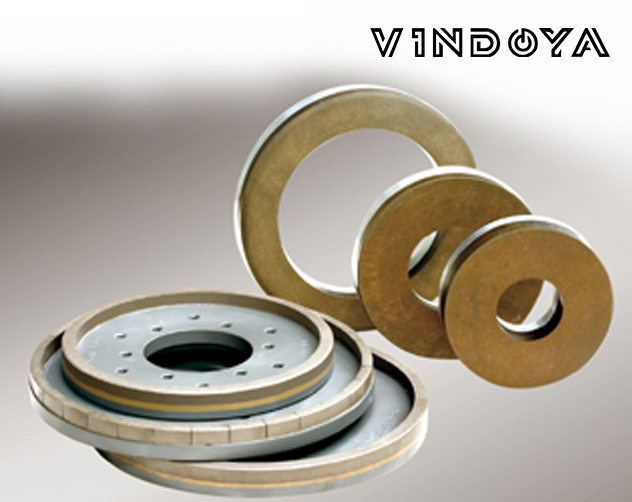

Name: Dry Edge Grinding Wheel Description: The dry edge grinding wheel is designed to precisely grind glazed tiles without water cooling, achieving the same effect as traditional wet edge grinding. Traditional wet edge grinding results in tiles absorbing a significant amount of water, leaving residual moisture even after the drying process. This can lead to issues like mold and staining during storage and transport, severely affecting product quality. The dry edge grinding process effectively prevents such problems while eliminating the need for drying equipment and processes required in traditional wet grinding. This results in savings in energy consumption, labor, equipment investment, and production space usage. Performance: For example, the Benlang DW series dry grinding wheels can achieve a grinding rate of up to 24 m/min, with a single unit capable of grinding up to 3200 m² of tiles. Features: Customizable configurations tailored to specific processing needs. Ensures high verticality and dimensional precision of the processed workpiece. Produces smooth, refined edges with no chipping or cracking. Strong bonding strength, safe and reliable for heavy grinding loads. Fast edge exposure, sharpness, and long service life. Excellent heat dissipation and stable performance over its lifespan.
Name: Dry Chamfering Wheel Description: The dry chamfering wheel is designed to precisely grind glazed tiles without the need for water cooling, achieving the same chamfering effect as traditional wet chamfering. Traditional wet chamfering causes tiles to absorb a significant amount of water, which remains even after the drying process. This residual moisture can lead to mold, staining, and other issues that severely affect product quality during storage and transport. The dry chamfering process effectively prevents these problems and, more importantly, reduces the need for drying equipment and processes typically required in traditional wet chamfering, resulting in savings in energy consumption, labor, equipment investment, and space usage. This product is suitable for dry chamfering of glazed wall tiles and features high grinding efficiency, good grinding effects, and excellent stability, fully meeting the requirements of industrial dry chamfering applications.

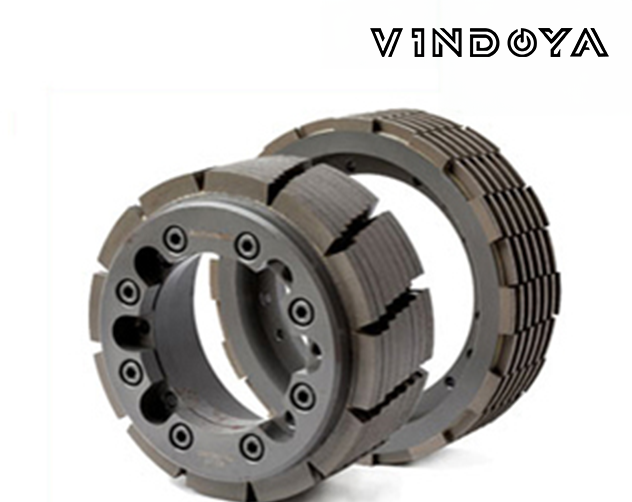

Name: Head-Welded Cylindrical Wheel Description: The diamond cylindrical wheel is a coarse grinding tool used after diamond roller knives have flattened and thickened the surface, and can also directly replace diamond roller knives to achieve the same effect. During operation, the high-efficiency grinding effect generated by the revolution of the grinding head and the rotation of the cylindrical wheel results in a smoother, finer surface on the brick blanks, which increases polishing speed, reduces the consumption of polishing tools, and lowers the re-polishing rate. Features include high grinding efficiency, excellent surface flatness of the brick blanks, fine and uniform grinding marks. It is characterized by excellent sharpness and high cutting efficiency.
